Product Detail

The RadioMaster Boxer Crush 2.4GHz ELRS Radio Transmitter combines size, ergonomics, and performance, making it the perfect choice for pilots on the go. Equipped with AG01 CNC Hall Gimbals and a pre-installed EdgeTX open system, this transmitter ensures precision control and an intuitive user experience. Ideal for FPV racing drones, quad RC airplanes, and helicopters, the Boxer Crush offers versatile protocols, a built-in cooling fan, and fast charging support. Available in various colors, this compact yet powerful transmitter delivers up to 16 channels and features adjustable grips, a removable antenna, and a spacious battery compartment.

Please be aware that the Radiomaster Boxer Crush 2.4GHz ELRS Transmitter is currently available for pre-order. Based on the latest information from our factory, we expect to begin shipping in mid to late August. If you are unable to wait for this timeframe, we kindly ask that you refrain from placing an order to avoid any potential inconvenience with your shopping experience.

Features

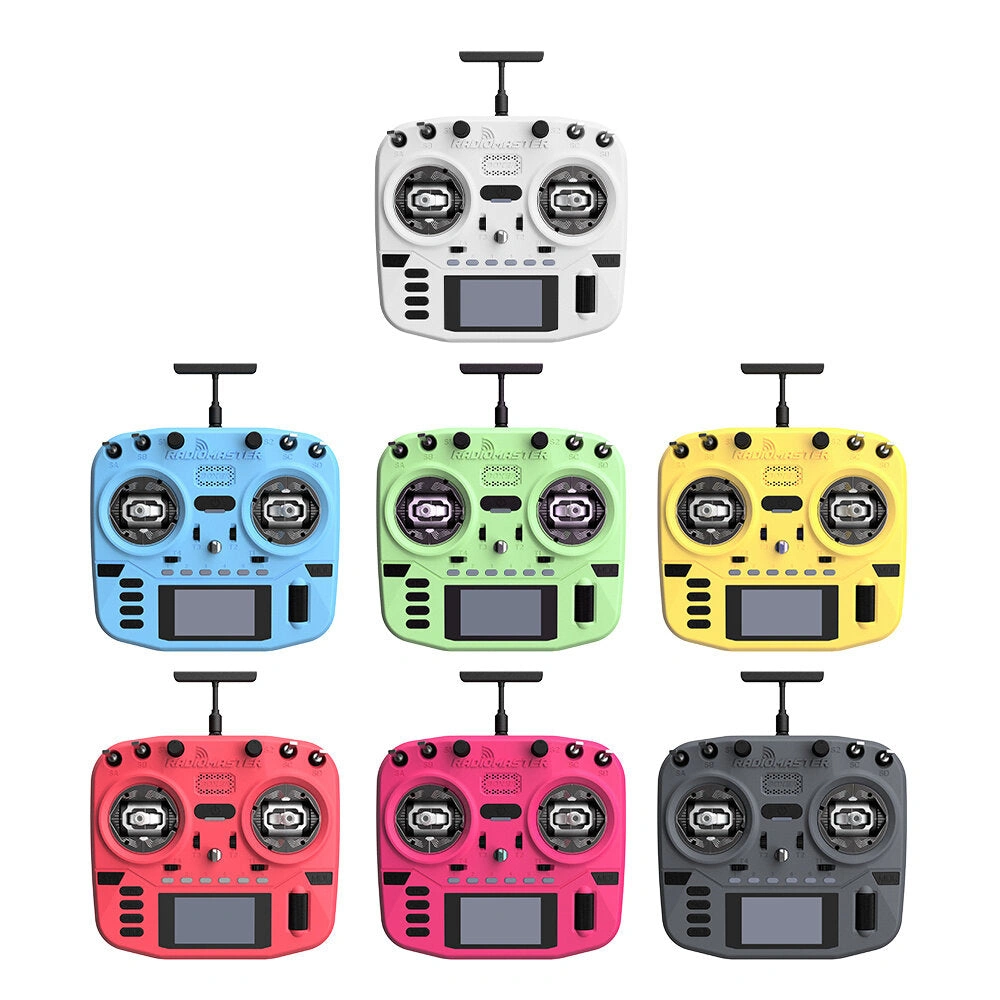

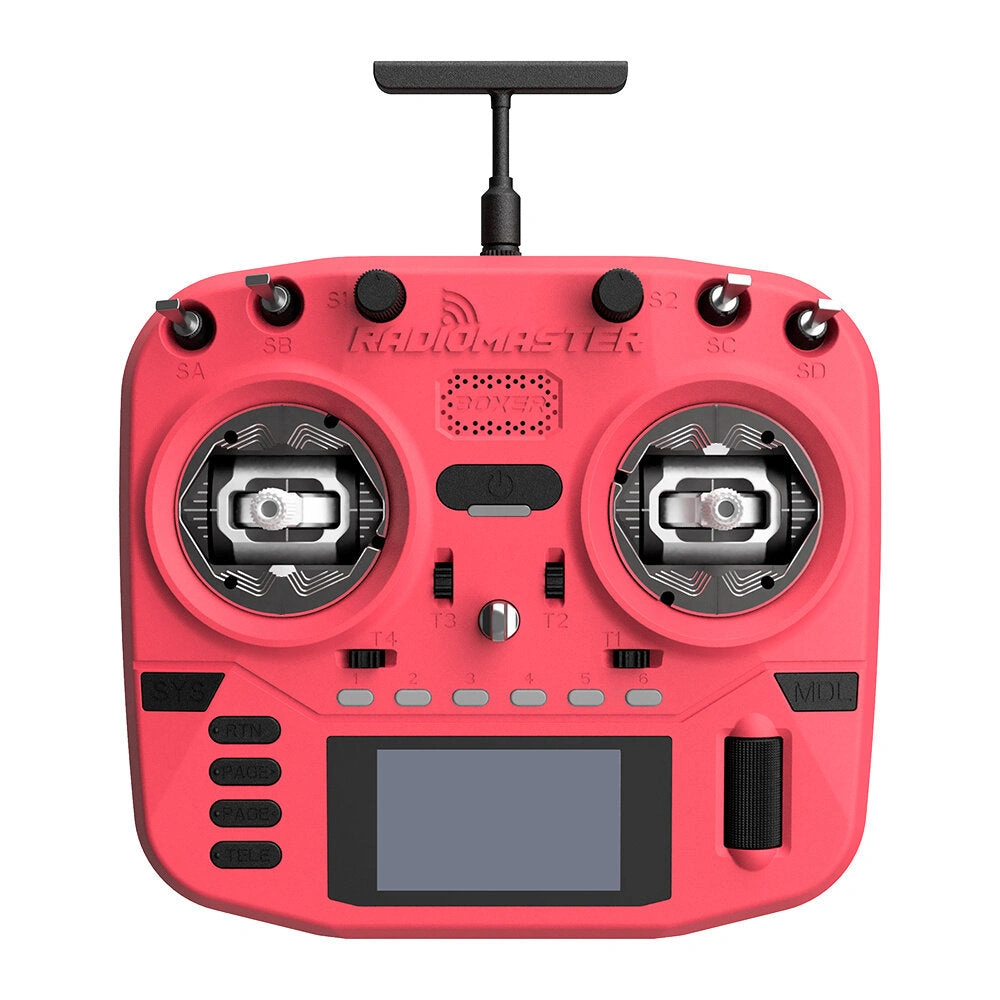

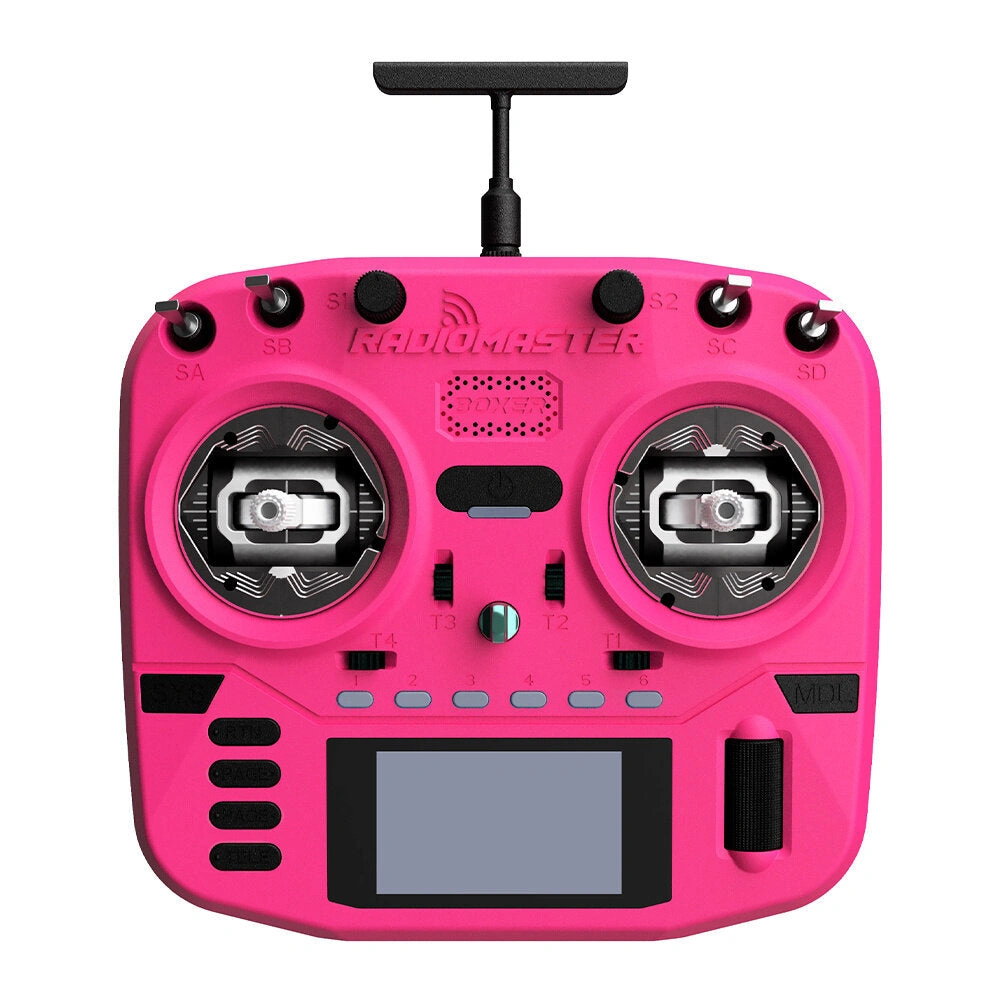

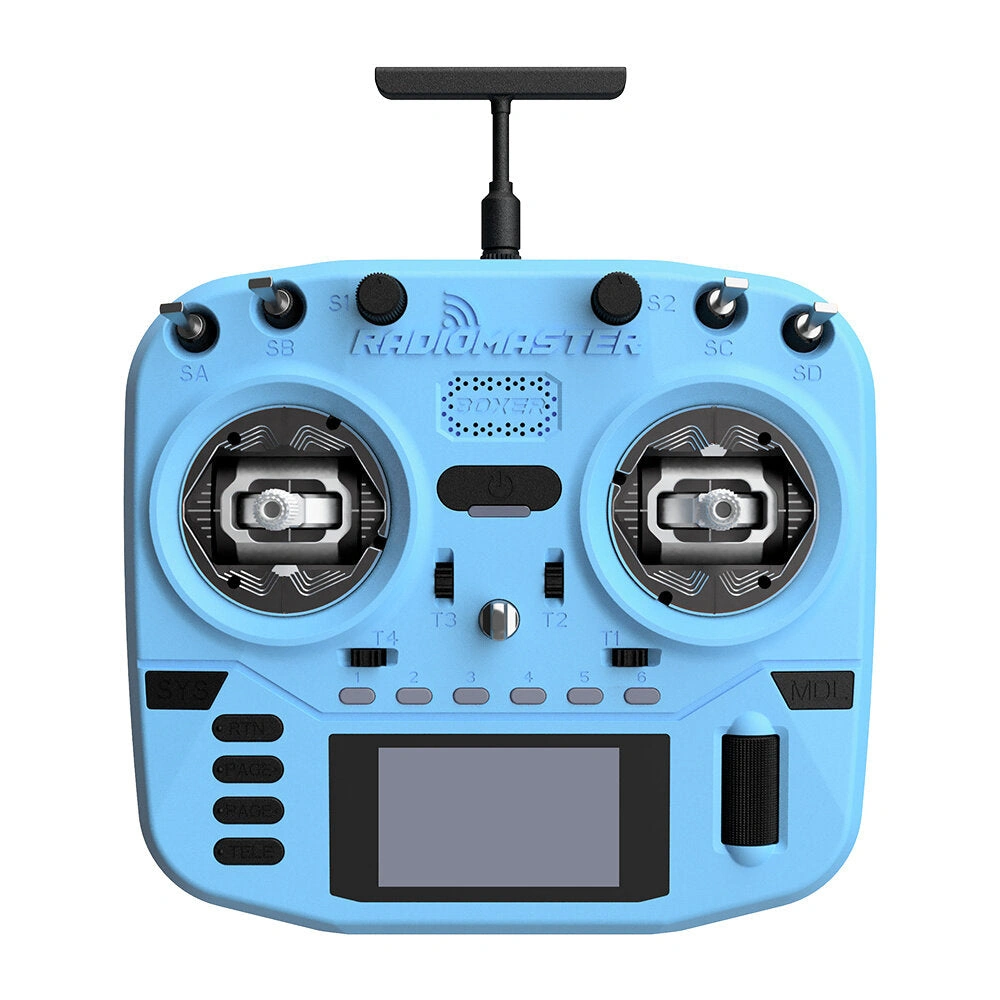

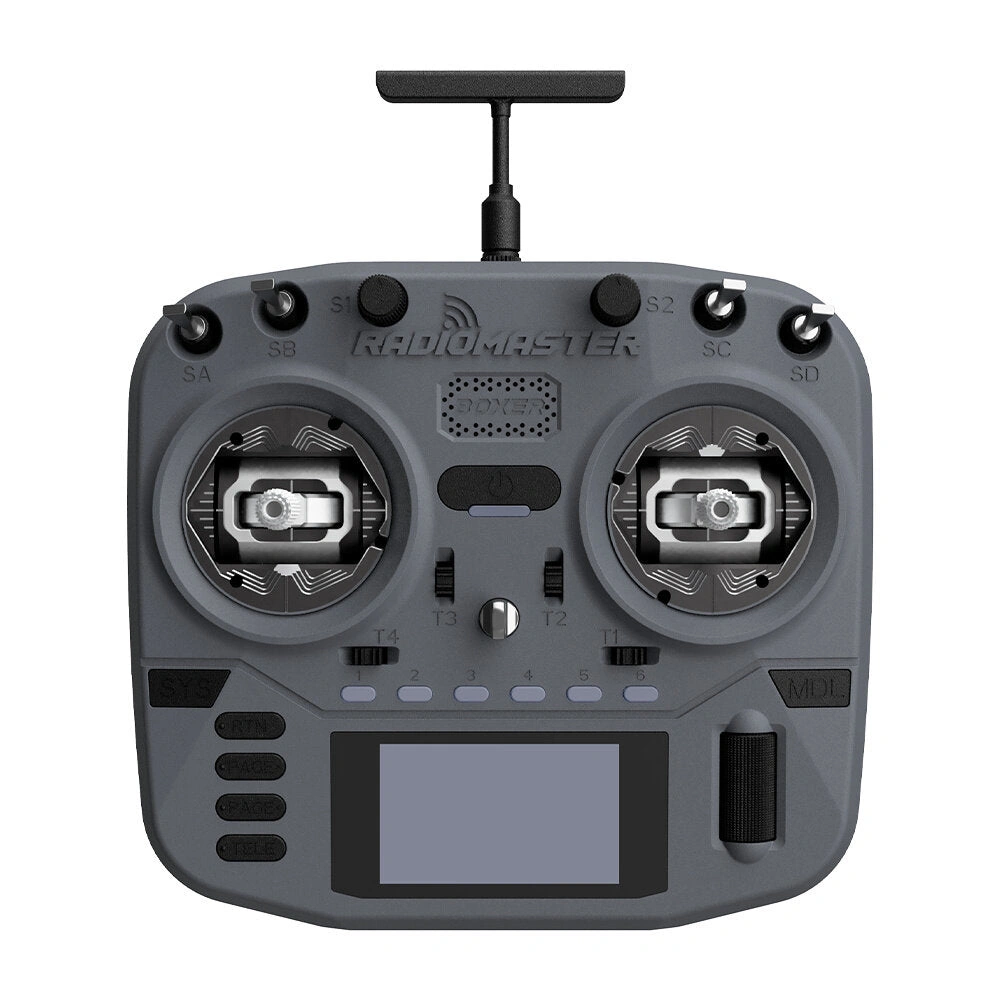

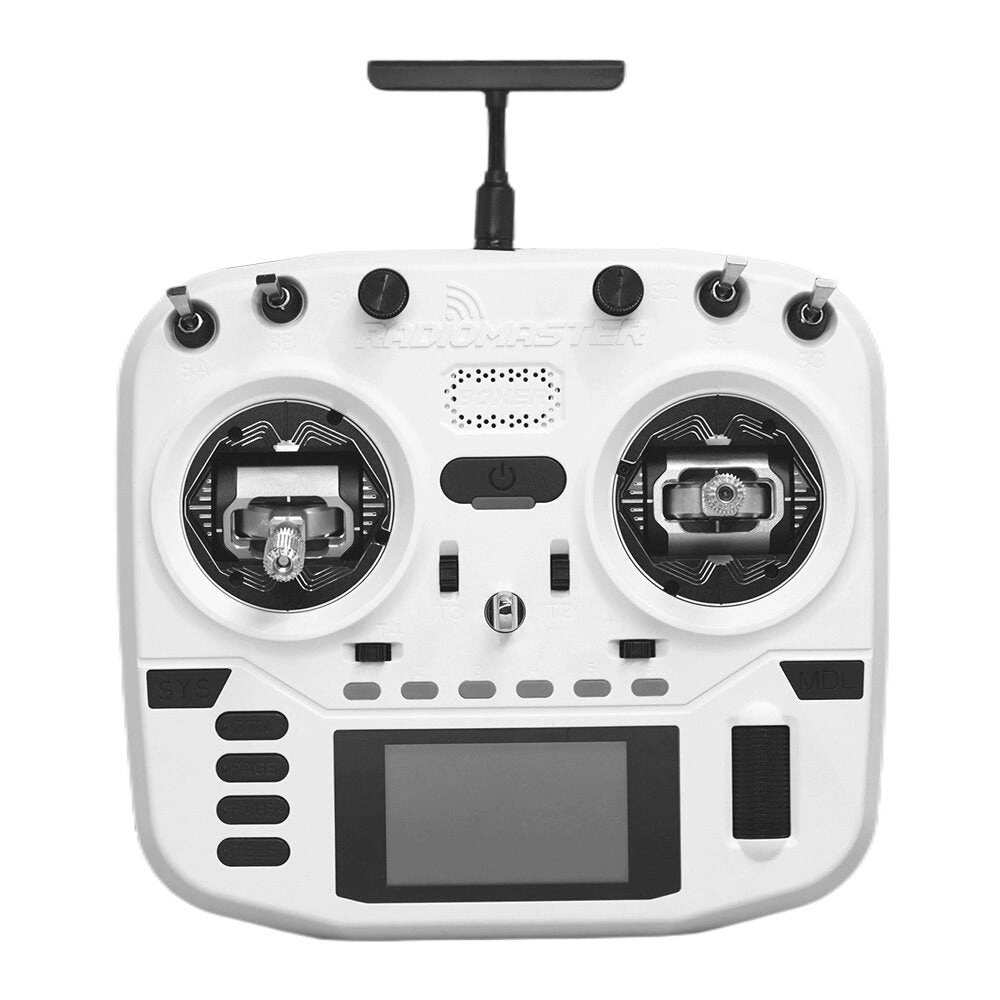

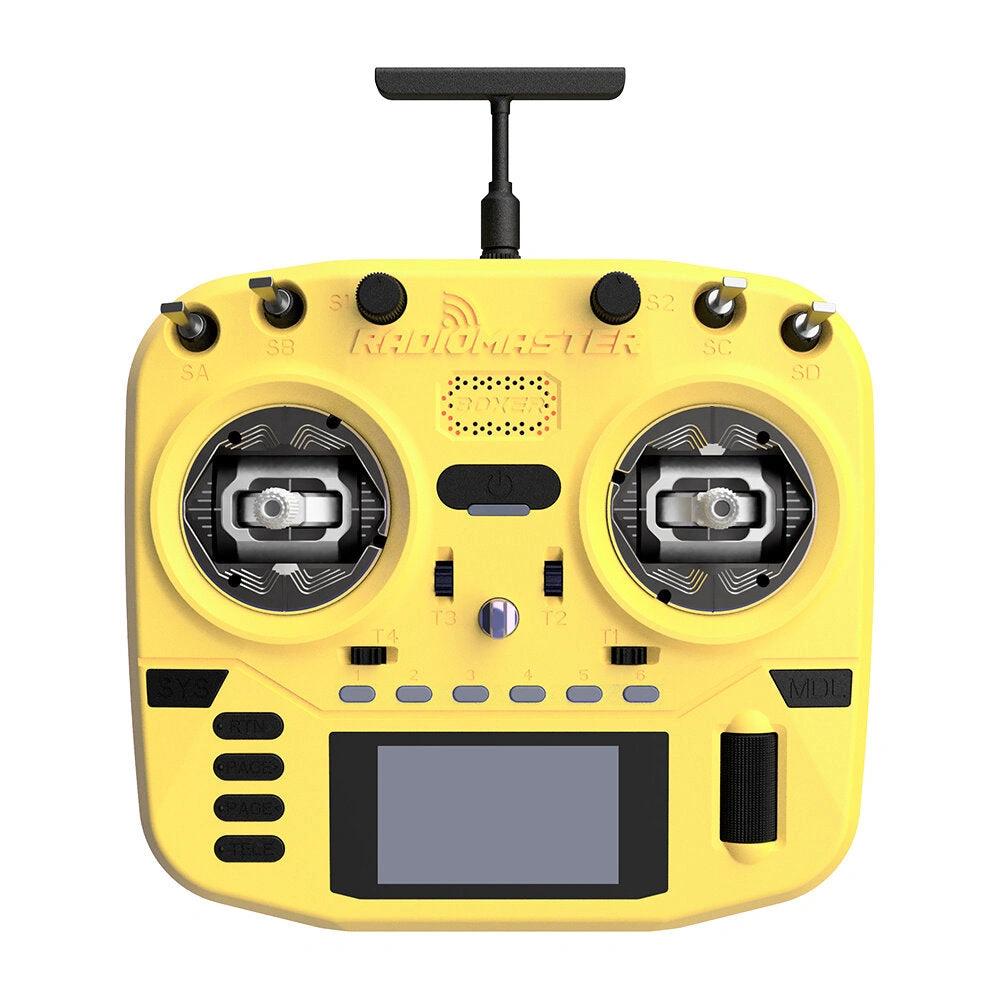

• Optional colors - Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
• CNC Aluminum AG01 Hall-effect Gimbal
• Available with built-in ExpressLRS Backpack
• Featuring a powerful STM32F407VGT6 with 1MB Flash and 192KB RAM
• Preinstalled EdgeTX firmware
• Internal ExpressLRS module capable of 1,000Hz refresh rate
• Adjustable ExpressLRS RF output
• QC3.0 fast charging support 2.0A MAX
• Compact design with excellent ergonomics
• New low-profile latching SE switch and momentary SF switch
• Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included)
• Standard JR module compartment
• Internal module cooling fan built-in
• RadioMaster standardized button layout
• Versatile 6-position switch for flight mode access
• Adjustable and Removable T-shape Antenna

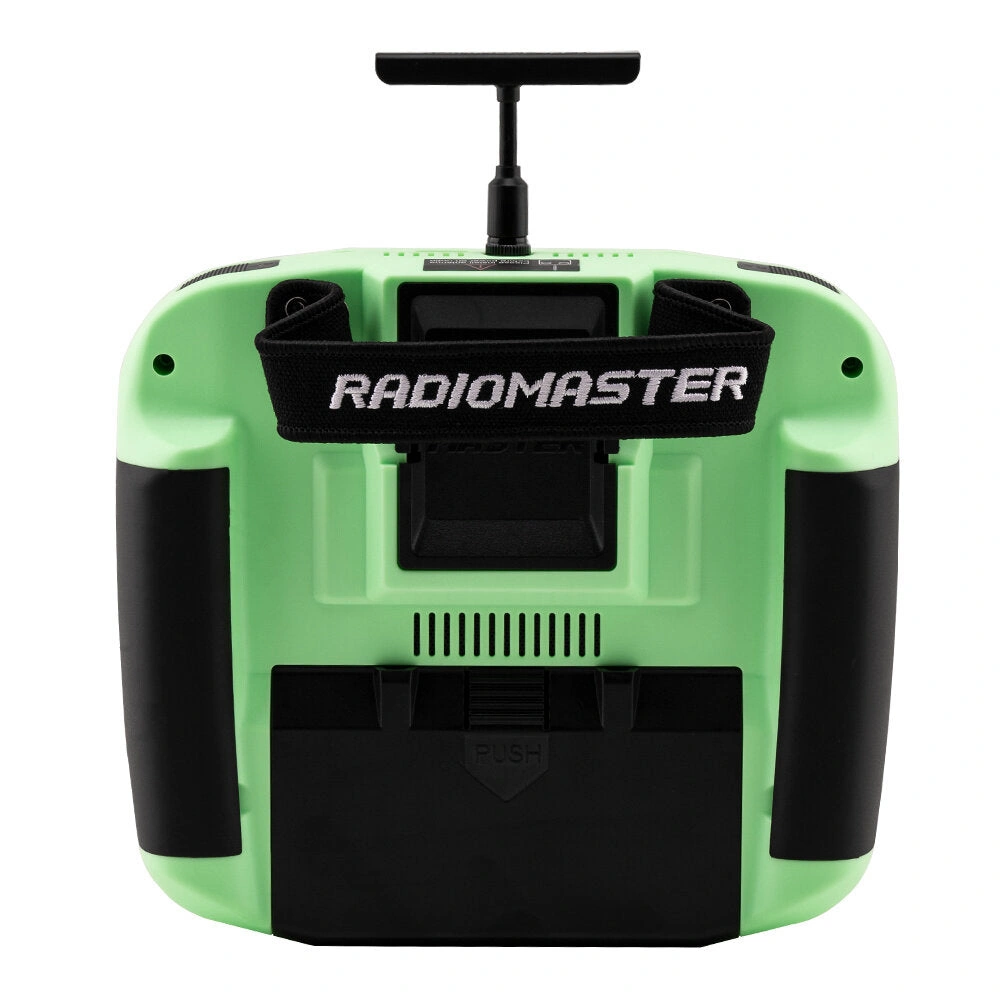

• Industry first fabric handle for improved portability
• Changeable, ergonomic grips
• Redesigned SD card slot with new and improved 512mb pre-loaded SD card included
• External module power slots in battery cover
• RadioMaster signature carry case and gimbal protector are included as standard to ensure your radio stays safe while on the move

Specifications

• Item: Boxer Crush Radio
• Color:  Iron Grey / Frost White / Mint Mist / Hot Pink / Cherry Red / Iceberg Blue / Lemon Twist Yellow
• Size: 235*178*77mm
• Weight: 617.1g
• Frequency: 2.400GHz-2.480GHz
• Internal RF: ExpressLRS 2.4GHz
• Supported protocols: Module dependent
• Cooling fan: Built-in
• Voltage Range: 6.6-8.4V DC
• Radio Firmware: EdgeTX (Transmitter) / ExpressLRS (RF module)
• Channels: Max 16 channels (Receiver dependent)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)
• Display: 128*64 Monochrome LCD display
• Gimbal: AG01 CNC Hall Gimbal
• External module: JR / FrSKY / Crossfire compatible
• Upgrade Method: USB / SD card & EdgeTX Companion PC software

EdgeTX Operating System and ExpressLRS RF System Pre-installed

Preinstalled with EdgeTX and ExpressLRS, the BOXER Crush Radio has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX and ExpressLRS teams to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX and ExpressLRS, ensuring the concepts of open standards are carried forward into the future.

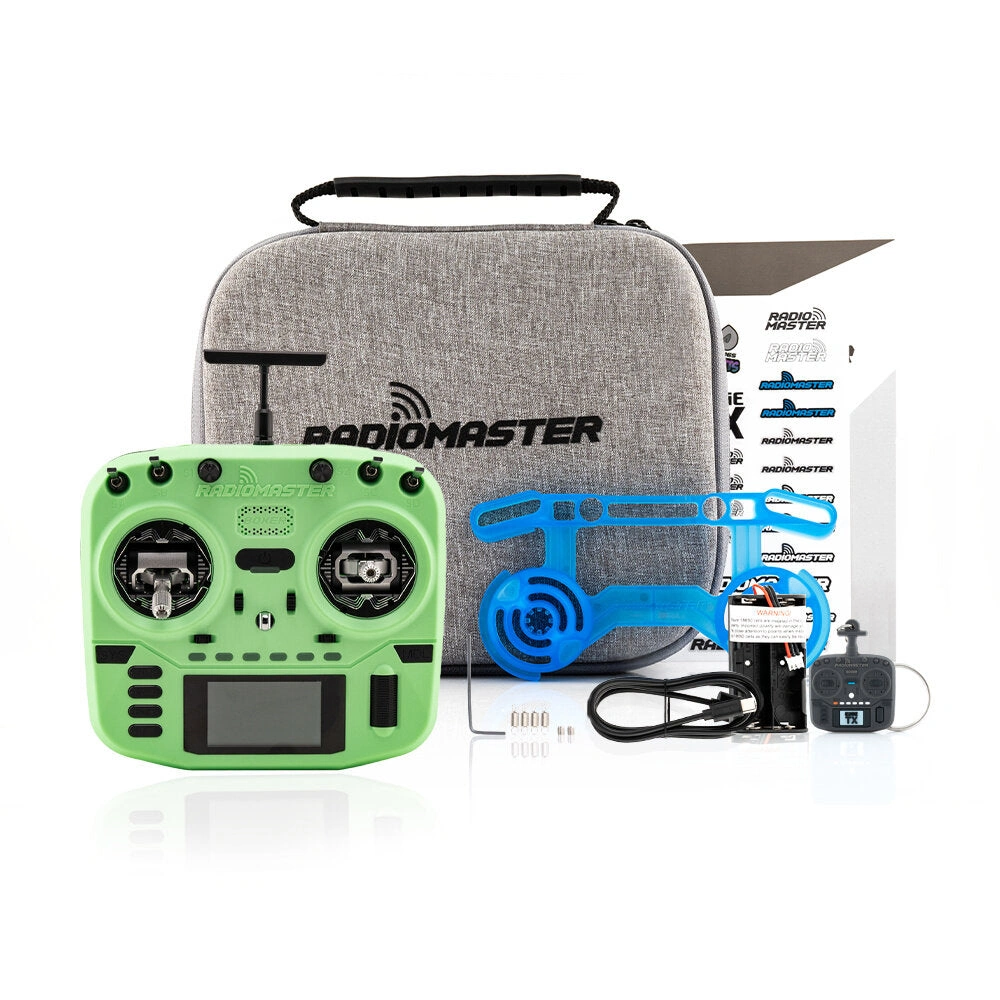

Package Includes

• 1 * Boxer Crush Radio
• 1 * Signature Carry Case
• 1 * T Antenna
• 1 * USB-C Cable
• 1 * Gimbal Protector
• 1 * 1.5mm Allen Key
• 2 * M4*4 Screws
• 4 * Low Tension Springs
• 1 * 18650 Battery Tray
• 1 * Stickers
• 1 * Manual
